How to Import Root CA

This document walks users through adding Athena's Root Certificate Authority (CA) to your Windows-based computer.



In order for Orion to communicate with the Greengrass Core the Greengrass Group CA has to be added to Windows security store. This allows communication between Orion and Athena via Orion's Cloud.



1.From the Windows Start menu, open Run.

importca_run

2.Type mmc, and choose OK. If prompted, select yes to allow program to make changes to your computer.

Screen Shot 2020-08-13 at 11.53.20 AMScreen Shot 2020-08-13 at 11.53.33 AM

3.In the console window, from the File menu, choose Add/Remove Snap-in.

Screen Shot 2020-08-13 at 11.53.55 AM

4.Choose Certificates, and then choose Add. Choose Computer account, and then choose Next.

Screen Shot 2020-08-13 at 11.54.10 AM

Screen Shot 2020-08-13 at 11.55.03 AM

5.Choose Finish, and then choose OK.

Screen Shot 2020-08-13 at 11.55.26 AM

Screen Shot 2020-08-13 at 11.55.54 AM

6.Expand Certificates > Trusted Root Certification Authorities > and then choose Certificates.

Screen Shot 2020-08-13 at 11.57.07 AM

7.On the right menu, choose Certificates, choose More Actions, All Tasks, and then Import.

Screen Shot 2020-08-13 at 11.57.41 AMScreen Shot 2020-08-13 at 11.57.56 AM

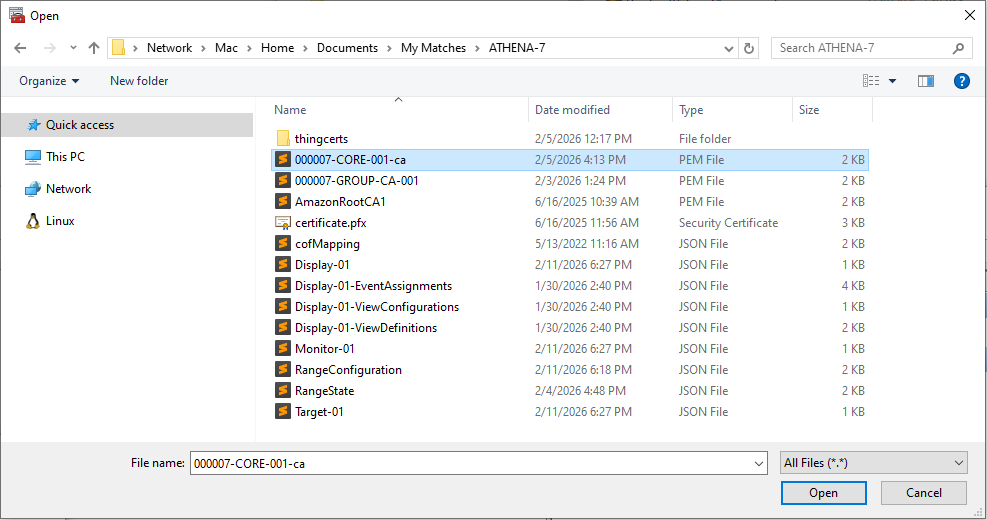

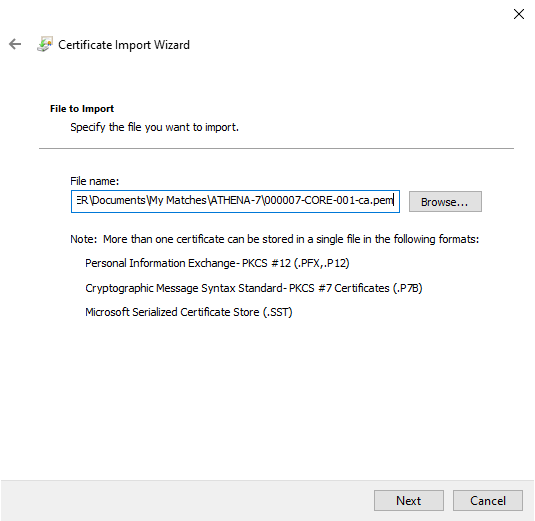

8.On the Import Wizard page, choose Next. Browse your local folder, or the shared folder where you saved the .pem file, and choose Open.

Screen Shot 2020-08-13 at 11.58.17 AMScreen Shot 2020-08-13 at 11.58.49 AM

a.Note: If you can’t see the file, select All Files (*) on the bottom right drop-down menu to see all of the files in the folder.



9.Choose Next, and then choose Finish. You should see a message that confirms the certificate was imported successfully. Close the console window and choose No if you are prompted to save the template.

Screen Shot 2020-08-13 at 11.58.59 AMScreen Shot 2020-08-13 at 11.59.11 AMScreen Shot 2020-08-13 at 11.59.27 AMScreen Shot 2020-08-13 at 11.59.37 AM
